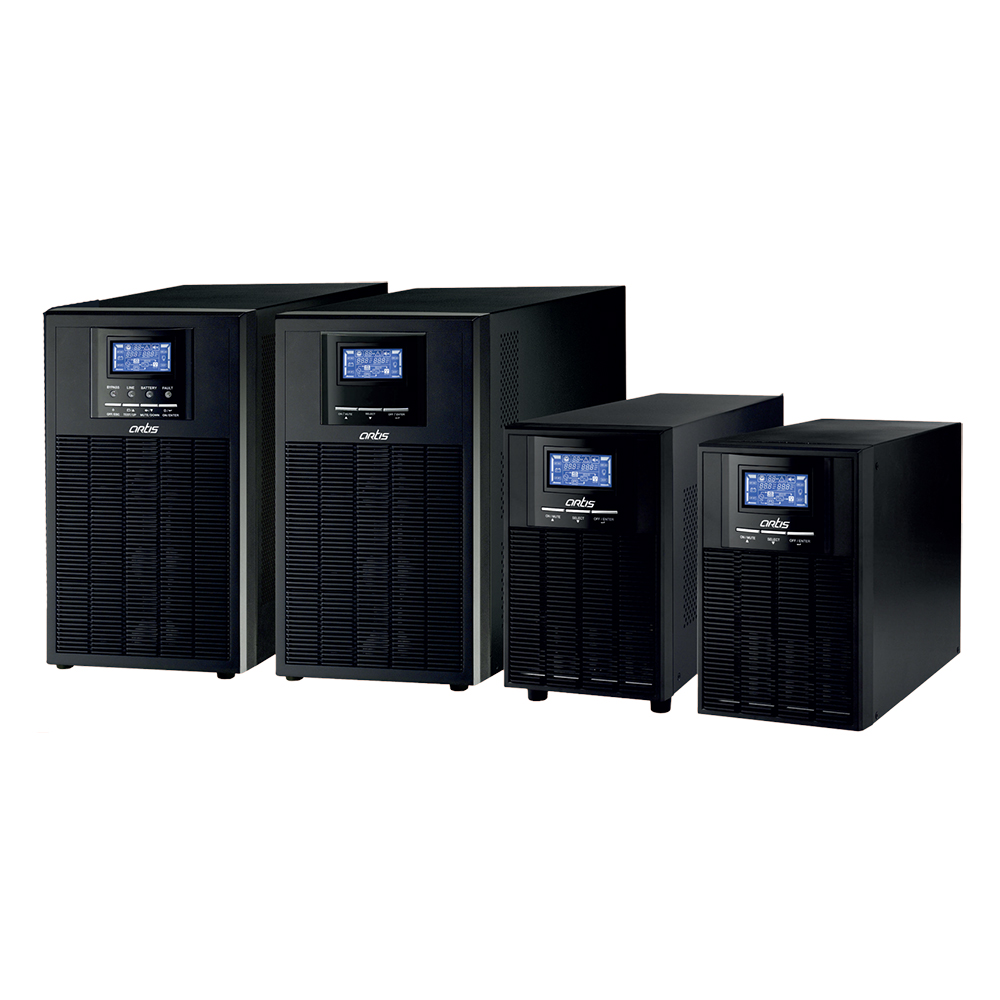

Artis UPS 3KVA Pro with External Batteries

Artis UPS 3KVA Pro with External Batteries – High Frequency

Artis UPS 3KVA Pro with External Batteries Online UPS High Frequency Variants

A high-performance 3KVA UPS system with external batteries, offering reliable power backup for critical equipment. Ideal for small businesses, offices and home setups Artis UPS 3KVA Pro with External Batteries ensures uninterrupted power during outages with extended battery runtime for enhanced protection of sensitive electronics.

Add to wishlist
Compare
Buy Now
Estimated Delivery :
Jan 23 - Jan 26
Free Shipping & Returns :
On orders above $79

More payment Options

Description

Features

  • Microprocessor controlled for optimal reliability
  • Cold start feature (DC power on)
  • Wide Input Voltage Range (110V to 300V)
  • Built-in OVPD (Over Voltage Protection Device)
  • RS232/USB for UPS parameters monitoring
  • Emergency power off (EPO) (6kVA)

Online (HF) UPS has following few Application Areas

Graphic Workstations
Network Servers
Data Processing Centers
Data Warehouses
Medical Equipments
Tele Communication
Networking Equipments
Mini and Micro Computers
BPOS
(First year parts and labour, 2nd year parts only)
Items in the box :
  • 1 UPS, AC Power cord, 1 pair DC cable,
  • 1 Management software with cable, User manual.

Specifications

 Powersafe 3kVA Pro
Model EB
CapacityVA/Watts3000/2400
Input
Voltage Range (AC)110 to 300VAC at 50% Load, 160 to 280V at 100% Load
Built-in OVPD#Yes
Frequency Range40 to 70Hz
PhaseSingle Phase with Neutral and Ground
Power Factor>0.99 @ Nominal Input Voltage at Full Load
Output
Voltage208/220/230/240VAC User Selectable
Power Factor0.8
Regulation± 1%
FrequencyMains47 to 53 Hz
Battery50Hz ± 0.25Hz
Over Load (Bat Mode)100-110%Audible Warning
110-130%Shutdown after 30 sec
>130%Shutdown immediate
Current Crest Ratio3:1
HarmonicLinear Load<3%
DistortionNon Linear<6%
TransferChangeoverZero
TimeTo Bypass4ms (Typical)
WaveformPure Sine wave
Efficiency%Mains90
Battery88
Battery
DC Bus Voltage72
Number of Batteries6
Built-in Battery No
External Battery (AH) 18~120
Charging Current 1/2/4/6A
Charger Current Setting Adjustable
Charging Voltage (±1%)82.1
Indications
LCD PanelLoad Level, Battery Level, AC Mode, Battery Mode, Bypass Mode and Fault
Physical
Dimensions mmBuilt-in421x190x318
(D x W x H)External397x145x220
Net Weight 7.4Kg
Environment
Operating Humidity20-90% RH @0-40C (Non Condensing)
Noise Level 1 meter<55dBA
Management
Communication PortSerial/USB
Supports Windows 2000/2003/XP/Vista/2008/7/8, Linux, Unix and Mac
Optional Intelligent SlotPower Management from SNMP manager and web browser
