Synology DS2422+ 12 bays Nas

Synology DS2422+ 12 bays Nas

Synology DS2422+ 12 bays Nas Scalable Storage for Growing Businesses

The DS2422+ offers 12 drive bays, providing expansive storage for growing businesses. With advanced data protection, scalability, and efficient file management, it’s an ideal solution for organizations needing reliable, high-capacity storage for data-intensive tasks.

Add to wishlist
Compare
Buy Now
Estimated Delivery :
Jan 23 - Jan 26
Free Shipping & Returns :
On orders above $79

More payment Options

Description

Built for high-performance mass storage

The 12-bay Synology DiskStation DS2422+ is a capable choice for small and medium businesses with large storage, file sharing, and data protection requirements in a multi-user environment. It comes with powerful storage management, file syncing, surveillance, and backup software, and is suitable for editing high-quality video and as VM storage.

CPU

AMD Ryzen™ Quad-core 2.2 GHz

Throughput

2,201/1,383 MB/s sequential read read/write throughput

Expandability

Easily add 10/25GbE and NVMe SSD cache

Scalability

Expand to 24 bays with one DX1222 expansion unit

Faster Performance

Enjoy a smooth experience even with multiple users running demanding applications. See the numbers that make the DS3622xs+ more efficient.

Rise to the challenge

Prepare your DS2422+ for heavy workloads or upgrade flexibly as your business continues to grow. Use add-in cards to add bandwidth, fast SSD cache, or both.

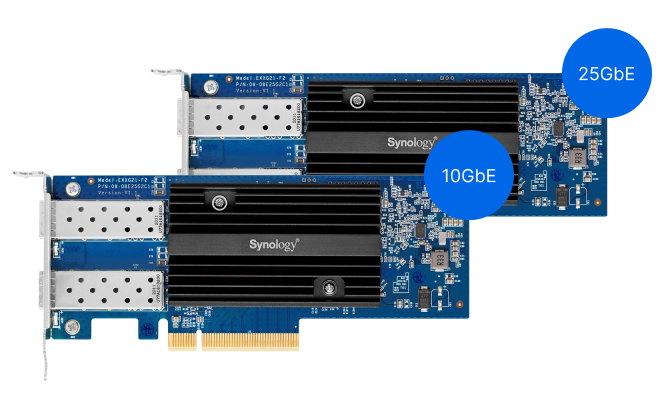

Maximize Bandwidth

Handle heavier input/output and serve more users with dual-port Synology 10 or 25GbE network interface cards.

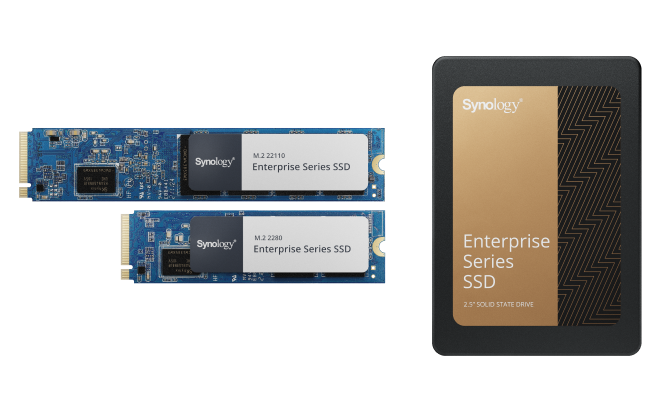

Boost Storage Performance

Accelerate HDD arrays with an M.2 NVMe SSD adapter card and SNV3000 series SSDs, or install SAT5200 SATA SSDs in drive bays to increase performance with SSD cache.

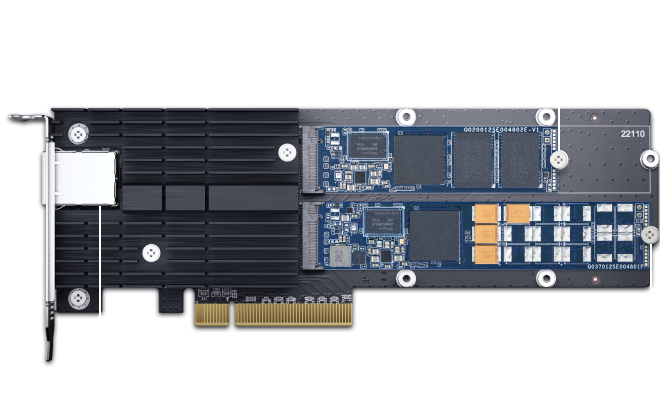

Do both with One Card

Add both 10GbE connectivity and M.2 NVMe SSD slots for SSD cache with a single combination NIC and adapter card.

Out-of-the-box Data Protection

Protect your data with professional backup software for your Synology NAS, other devices, and applications.


Ready for Remote Work

Empower your workforce to collaborate, share files, and communicate from anywhere.
Synology Drive

Access &collaborate on team documents, via web portal, desktop clients & mobile apps with powerful cross-site sync & file management.

Synology Office

Collaborate in real time on documents, spreadsheets and slides, for greater, synergy and productivity.

Synology Chat

Instantly message colleagues and organize conversations to achieve clear and cohesive communication.

Certified virtual Machine Storage

DSM streamlines provisioning for and management of virtual machines with full certification for VMware® vSphere™, Microsoft® Hyper-V®, Citrix® XenServer™, and OpenStack virtualization environments.

Synology Storage Console for VMware® or Windows platforms lets you manage storage directly from your hypervisor. VMware® VAAI integration and Windows ODX help offload storage operations and speed up data transfer, and a Kubernetes CSI driver lets you provision and manage volumes directly from the K8s CLI.

Works best with Synology drives

Engineered to handle intensive 24/7 workloads, Synology drives consistently deliver top-grade performance.

HDD
Enterprise Series 3.5″ SATA
Plus Series 3.5″ SATA
SSD
Enterprise Series 2.5″ SATA
Enterprise Series M.2 NVMe
enterprise-hat-img
plus-hat3310
enterprise-sat-img
enterprise-snv3000

Powered by Synology DiskStation Manager

Data Protection

Keep your business safe from data loss and minimize service downtime.

User Management

Manage user accounts and devices throughout your business with powerful directory services.

Security

Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.

File Management

Manage, sync, and share files from multiple devices through a centralized platform.

System Administration

Manage the health of your deployments and centrally administer updates with ease.

Security

Secure data with comprehensive built-in security tools to protect your devices against evolving threats.

We have you covered

The DS2422+ is backed by Synology’s 3-year hardware warranty. An optional 2-year extended warranty that extends coverage to 5 years is available in selected regions.

DiskStation DS2422+

  • 1. Status indicator
  • 2. Alert indicator
  • 3. Power button
  • 4. LAN indicator
  • 5. Drive status indicator
  • 6. Drive tray
  • 7. Drive tray lock
  • 8. Power port
  • 9. System fan
  • 10. PCIe expansion slot
  • 11. Reset button
  • 12. USB 3.2 Gen 1 port
  • 13. Console Port
  • 14. Expansion Ports
  • 15. 1GbE RJ-45 Ports

Hardware Specs

Hardware Specifications
CPUCPU ModelAMD Ryzen V1500B
CPU Quantity1
CPU Core4
CPU Architecture64-bit
CPU Frequency2.2 GHz
Hardware Encryption EngineYES
MemorySystem Memory4 GB DDR4 ECC SODIMM
Memory Module Pre-installed4 GB (4 GB x 1)
Total Memory Slots2
Maximum Memory Capacity32 GB (16 GB x 2)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
StorageDrive Bays12
Maximum Drive Bays with Expansion Unit24 (DX1222 x 1)
Compatible Drive Type*
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
Hot Swappable Drive*YES
Notes
  • Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
  • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External PortsRJ-45 1GbE LAN Port4
USB 3.2 Gen 1 Port*2
Expansion Port1
Expansion Port TypeMini-SAS HD
Notes
  • This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
  • The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIePCIe Expansion1 x Gen3 x8 slot (x4 link)
AppearanceSize (Height x Width x Depth)270 mm x 300 mm x 340 mm
Weight9.5 kg
OthersSystem Fan120 mm x 120 mm x 2 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System FanYES
Power RecoveryYES
Noise Level*25 dB(A)
Scheduled Power On / OffYES
Wake on LAN / WANYES
Power Supply Unit / Adapter550 watts
AC Input Power Voltage100V to 240V AC
Power Frequency50/60 Hz, Single Phase
Power Consumption73.11 watts (Access)
32.12 watts (HDD Hibernation)
British Thermal Unit249.63 BTU/hr (Access)
109.67 BTU/hr (HDD Hibernation)
Notes
  • Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
TemperatureOperating Temperature0°C to 40°C (32°F to 104°F)
Storage Temperature-20°C to 60°C (-5°F to 140°F)
Relative Humidity5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
  • UL
Warranty3-year hardware warranty, extendable to 5 years with EW202
Notes
  • The warranty period starts from the purchase date as stated on your purchase receipt.
  • EW201/EW202 is only available in Asia, Africa, and Oceania. Refer to the Extended Warranty website for details on supported countries/regions.
EnvironmentRoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1
Optional Accessories
  • DDR4 ECC SODIMM: D4ES02-4G/D4ES02-8G/D4ES01-16G
  • Expansion Units: DX1222
  • Enterprise Series 3.5" SATA HDD: HAT5300 Series
  • Plus Series 3.5" SATA HDD: HAT3300 Series
  • Enterprise Series 2.5" SATA SSD: SAT5200 Series
  • M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1
  • M.2 SSD Adapter Card: M2D20
  • 25GbE Network Interface Card: E25G30-F2
  • 10GbE Network Interface Card: E10G21-F2/E10G30-T2/E10G18-T1
NotesAll memory modules will operate at the maximum frequency specified by the CPU manufacturer.

Software Specs

DSM Specifications
Storage ManagementMaximum Single Volume Size108 TB
Maximum Internal Volume Number64
SSD Read/Write Cache (Determining cache size) YES
SSD TRIMYES
Supported RAID Type
  • Synology Hybrid RAID
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
RAID Migration
  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
  • RAID 5 to RAID 6
Volume Expansion with Larger HDDs
  • Synology Hybrid RAID
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
Volume Expansion by Adding a HDD
  • Synology Hybrid RAID
  • JBOD
  • RAID 5
  • RAID 6
Global Hot Spare Supported RAID Type
  • Synology Hybrid RAID
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
Notes
  • Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.
  • Each internal volume (may consist of multiple drives) is expandable up to 108TB.
File SystemInternal Drives
  • Btrfs
  • ext4
External Drives
  • Btrfs
  • ext4
  • ext3
  • FAT
  • NTFS
  • HFS+
  • exFAT
NotesexFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.
File ServicesFile Protocol
  • SMB
  • AFP
  • NFS
  • FTP
  • WebDAV
  • Rsync
Maximum Concurrent SMB/AFP/FTP Connections1,000
Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion)2,000
Windows Access Control List (ACL) IntegrationYES
NFS Kerberos AuthenticationYES
Notes
  • Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM.
  • During testing, the maximum number of SSDs supported by this model is installed in a RAID 5 configuration.
  • The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Account & Shared FolderMaximum Local User Accounts2,048
Maximum Local Groups256
Maximum Shared Folder512
Maximum Shared Folder Sync Tasks16
Hybrid ShareHybrid Share Folder Number10
Hyper BackupData & Folder BackupYES
Entire System BackupYES
NotesFull-system backup requires DSM 7.2 or later.
High AvailabilitySynology High AvailabilityYES
Log CenterSyslog Events per Second1,000
VirtualizationVMware ESXi 6.5 and VAAIYES
Windows Server 2022YES
Citrix ReadyYES
OpenStackYES
General SpecificationsSupported ProtocolsSMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers
  • Chrome
  • Firefox
  • Edge
  • Safari
Supported LanguageEnglish, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
NotesFor an updated list of supported browser versions, check the DSM Technical Specifications.
Add-on Packages view the complete package list
Antivirus by McAfee (Trial)YES
Central Management SystemYES
Synology ChatSuggested Maximum Users1,500
Suggested Concurrent Users150
NotesFor tested models with expandable memory, the maximum amount of RAM was installed.
Download StationMaximum Concurrent Download Tasks80
SAN ManagerMaximum iSCSI Target Number128
Maximum LUN256
LUN Clone/Snapshot, Windows ODXYES
Synology MailPlus / MailPlus ServerFree Email Accounts5(Additional accounts require purchase of licenses)
Suggested Maximum Users750
Suggested Concurrent Users150
Maximum Server Performance1,484,000 emails per day, approx. 45 GB
Notes
  • Models with more than 4 bays were installed with two SSDs for SSD cache.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers.
  • Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Media ServerDLNA ComplianceYES
Synology PhotosFacial RecognitionYES
Object RecognitionYES
Snapshot ReplicationMaximum Snapshots per Shared Folder1,024
Maximum of System Snapshots65,536
Surveillance StationDefault Licenses2(Additional cameras require purchase of licenses)
Suggested Maximum IP Cameras and Total FPS (H.264)
  • 720p: 40 channels, 1200 FPS
  • 1080p: 40 channels, 1050 FPS
  • 3M: 40 channels, 600 FPS
  • 5M: 40 channels, 440 FPS
  • 4K: 32 channels, 320 FPS
Suggested Maximum IP Cameras and Total FPS (H.265)
  • 720p: 40 channels, 1200 FPS
  • 1080p: 40 channels, 1200 FPS
  • 3M: 40 channels, 1120 FPS
  • 5M: 40 channels, 600 FPS
  • 4K: 40 channels, 480 FPS
Notes
  • Performance figures are obtained from testing conducted with the device fully populated with drives, with their default memory configuration, and under a continuous recording setup. Actual system capabilities may vary based on configuration, drive performance, enabled features, and the presence of additional workloads.
  • Use NVR Selector to quickly find a suitable model based on your requirements.
  • The maximum number of camera stream outputs is 2 times the suggested maximum number of IP cameras.
Synology DriveRecommended Number of Concurrent Sync Clients550 (the number of connections that can be maintained when the recommended number of hosted files was reached)
Recommended Number of Hosted Files50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Notes
  • Exceeding the recommended numbers above will not block application operations, but may result in longer response time.
  • Utilizing SSD cache can significantly improve performance.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology OfficeSuggested Maximum Users4,500
Suggested Concurrent Users1,800
Notes
  • Multiple files were opened for testing and each file was edited by 30 users simultaneously.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Video StationYES
Virtual Machine ManagerRecommended Virtual Machine Instances8 (Learn more)
Recommended Virtual DSM Number (Licenses required) 8 (including 1 Free License)
NotesThe specifications vary depending on system configuration and memory size.
VPN ServerMaximum Connections40
X
