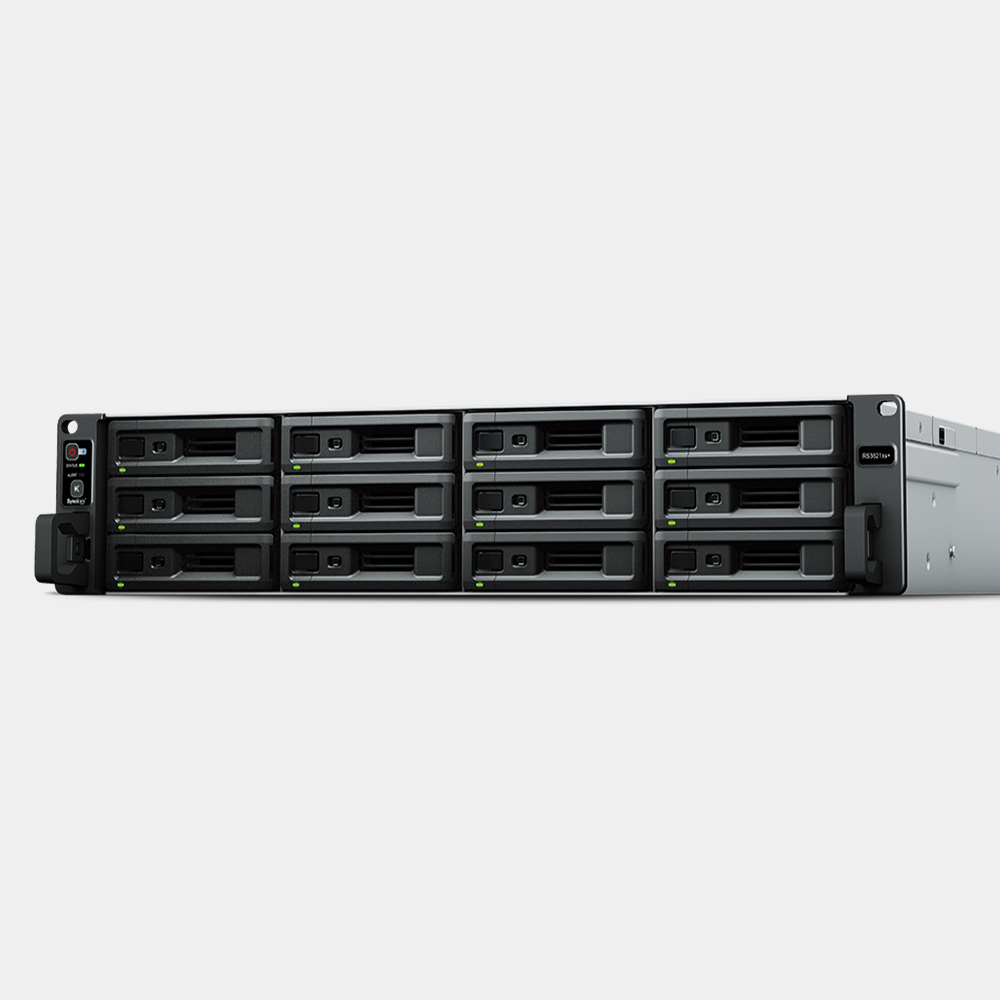

Synology Rackstation RS3621RPxs 12bays NAS

Synology Rackstation RS3621RPxs 12bays NAS

Synology Rackstation RS3621RPxs 12bays NAS High-Performance Business

The RS3621RPxs is a 12-bay NAS built for businesses, offering high performance and reliable data management. Powered by an Intel® Xeon® processor, it features dual 10GbE ports, advanced data protection and scalability for growing business needs.

Add to wishlist
Compare
Buy Now
Estimated Delivery :
Jan 23 - Jan 26
Free Shipping & Returns :
On orders above $79

More payment Options

Description

Safeguard your business assets

Synology RS3621RPxs is a powerful 12-bay storage server. Its 6-core processor enables compute-intensive services while its redundant power, ECC memory, and Btrfs file system safeguard mission-critical data. Capable of delivering 189,098 4K random read IOPS and 4,718 MB/s sequential read throughput1, it is ideal for small businesses.

Compute

Intel® Xeon® D-1531 6-core 2.2 GHz

Throughput

4,718 MB/s seq. read 189,098 4K random read IOPS1

Expandability

Dual PCIe slots for 10GbE or NVMe cache

Scalability

Up to 36 drive bays with RX1217RP/RX1217

Reliability first

Service continuity is at the core of the RS3621RPxs design.
Redundant power

Dual PSUs provide protection against a PSU failure or accidental cord removal while hot-swappable fans can be replaced without powering down the system.

Near-zero downtime

Synology High Availability (SHA) pairs two identical units together creating an active-passive cluster with minute-level failover.

Next-generation file system

Btrfs prevents data corruption and reduces maintenance overheads with advanced storage technologies and optimized snapshots.

Customize to suit

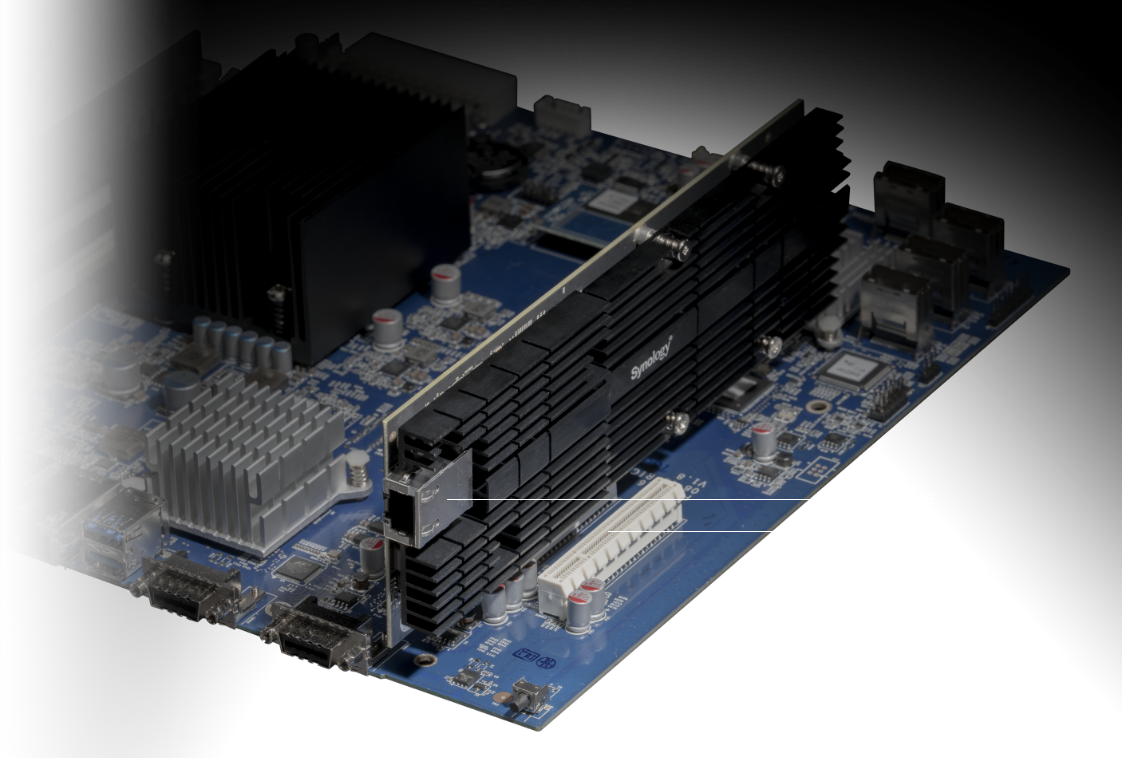

The two built-in PCIe slots allow users to customize the RS3621RPxs to satisfy unique performance, networking, and storage requirements.

10GbE ready

Support for 10GbE NICs expands the throughput of the unit by up to 5x times using link aggregation.

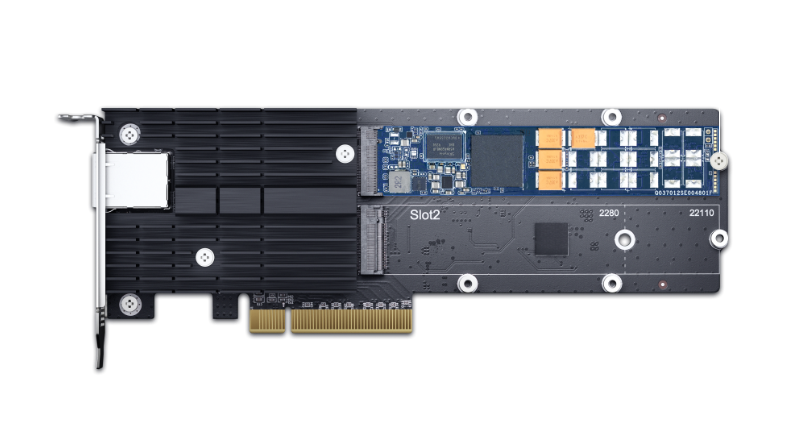

SSD cache

Boost read/write IOPS by up to 16 times by enabling SSD cache via our Synology M.2 NVMe adapter cards and SNV3000 Series SSDs or by installing one or more 2.5” SAT5200 SSDs.

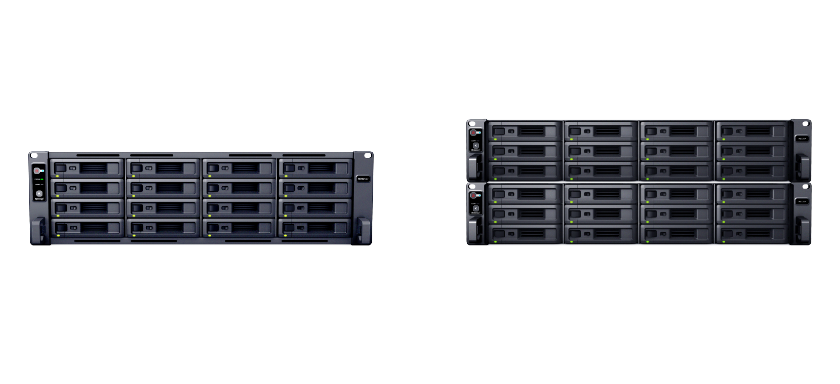

On-demand drive bays

Expand to 36 drive bays using two expansion units with minimal intervention.

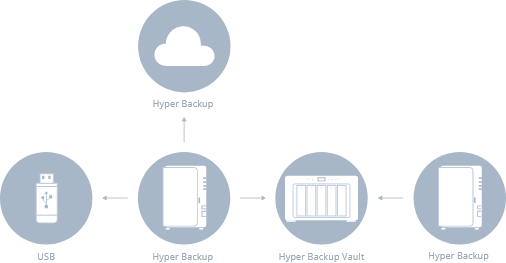

License-free backup solutions

Storage for virtualization

Synology iSCSI storage supports mainstream virtualization solutions with an easy management interface to enhance usability. VMware vSphere 6.5 and VAAI integration helps offload storage operations. Windows Offloaded Data Transfer (ODX) speeds up data transfer. OpenStack Cinder support turns your Synology NAS into a block-based storage component. Additionally, Synology Storage Console enables even more simplified storage provisioning and management options in VMware and Windows environments.

Powerful built-in surveillance functionality

Synology Surveillance Station transforms the RS3621RPxs into a feature-packed Network Video Recorder solution. Support for up to 75 IP cameras5 and video analytics such as motion detection, no idle zone, foreign object detection, and anomaly detection cater to the most common surveillance scenarios.
Secure and private

AES-256 encryption keeps locally-stored footage secure.

Access from anywhere, anytime

Access recordings and live streams whenever you want using a web browser, desktop client, or the DS cam mobile app.

Real-time alerts

Email, SMS, or push notifications alert you when incidents occur or predefined conditions are met.

Works best with Synology drives

Engineered to handle intensive 24/7 workloads, Synology drives consistently deliver top-grade performance.

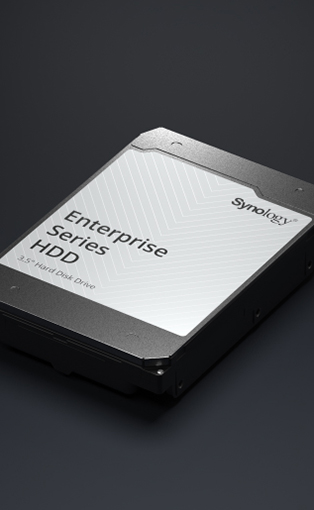

HDD

Enterprise Series 3.5″ SAS

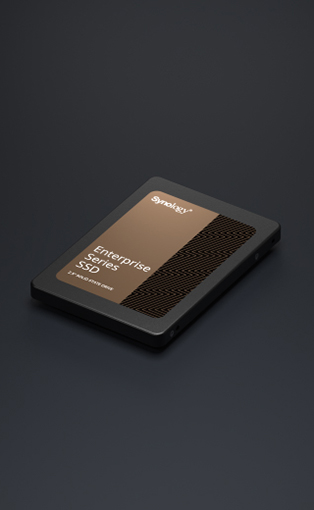

SSD

Enterprise Series 2.5″ SATA
Enterprise Series M.2 NVMe

Powered by Synology DiskStation Manager

The RS3621RPxs runs Synology DiskStation Manager (DSM), the web-based operating system with applications and services designed specifically for businesses.

Central Management System

Conveniently manage your fleet of Synology NAS from a centralized console.

Synology Drive

Instantly access your NAS files across multiple devices whenever you want, wherever you are.

Collaboration Suite

Satisfy all team collaboration needs behind the safety of your own private cloud with Synology Office, Calendar, and Chat.

Virtual Machine Manager

Run various operating systems in isolated sandboxes. Seamlessly clone, store, and migrate virtual machines.

Security

Secure data with comprehensive built-in security tools to protect your devices against evolving threats.

Public Cloud Integration

Back up and synchronize data easily between public cloud accounts and your NAS.

5-year warranty

At Synology, we are committed to product innovation and quality. The RS3621RPxs is backed by a 5-year limited warranty that includes technical support and hardware replacement services to maximize your return on investment.

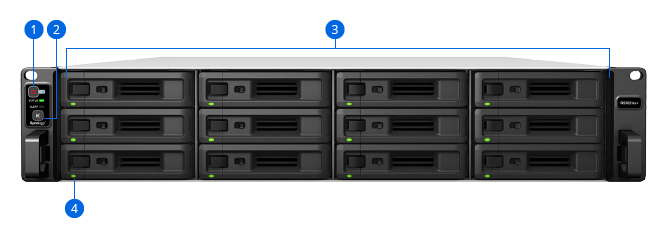

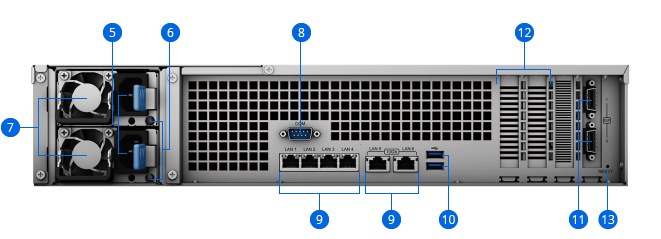

  • 1. Power button and indicator
  • 2. Alert Off Button
  • 3. Drive tray
  • 4. Drive status indicator

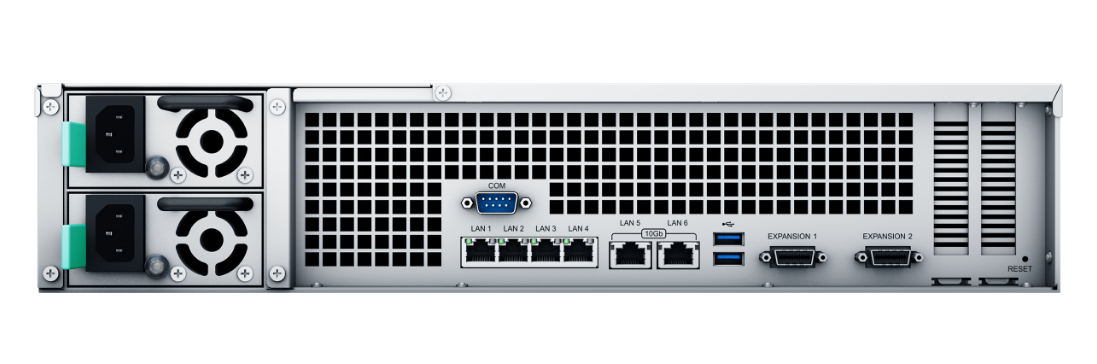

  • 5. Power Port
  • 6. PSU Indicators & Alert Off Buttons
  • 7. PSU fan
  • 8. Console port
  • 9. 1GbE RJ-45 port
  • 10. USB 3.2 Ports
  • 11. Expansion port
  • 12. PCIe expansion slot
  • 13. Reset button

Hardware Specs

Hardware Specifications
CPUCPU ModelIntel Xeon D-1541
CPU Quantity1
CPU Core 6
CPU Architecture64-bit
CPU Frequency 2.2 (base) / 2.7 (turbo) GHz
Hardware Encryption EngineYes
MemorySystem Memory 8 GB DDR4 ECC UDIMM
Memory Module Pre-installed 8 GB (8 GB x 1)
Total Memory Slots4
Maximum Memory Capacity64 GB (16 GB x 4)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
StorageDrive Bays 12
Maximum Drive Bays with Expansion Unit 36 (RX1217 x 2)
Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA SSD
Hot Swappable Drive*Yes
Notes
  • Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
  • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External PortsRJ-45 1GbE LAN Port4
USB 3.2 Gen 1 Port*2
Expansion Port2
Expansion Port TypeInfiniband
NotesThe USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIePCIe Expansion 2 x Gen3 x 8 slots (x8 link)
AppearanceForm Factor (RU) 2U
Size (Height x Width x Depth)88 mm x 482 mm x 724 mm
Weight 14.5 kg
Rack Installation Support*4-post 19" rack (Synology Rail Kit - RKS-02)
NotesThe rail kit is sold separately
OthersSystem Fan 80 mm x 80 mm x 4 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System FanYes
Power RecoveryYes
Noise Level*50.2 dB(A)
Scheduled Power On / OffYes
Wake on LAN / WANYes
Power Supply Unit / Adapter 500 watts
550 watts*
Redundant Power SupplyYes
AC Input Power Voltage100 V to 240 V AC
Power Frequency50/60 Hz, Single Phase
Power Consumption 140.01 watts (Access)
65.94 watts (HDD Hibernation)
British Thermal Unit477.43 BTU/hr (Access)
224.86 BTU/hr (HDD Hibernation)
Notes
  • Power supply specifications vary by hardware revision. A 500 W PSU is used in devices with serial numbers containing SYR (5th to 7th digits), while a 550 W PSU is in devices with UTR and VR2 serial numbers. For more information, refer to the Product Change Notice.
  • Power consumption is measured when it is fully loaded with Synology 8TB HAT5300-8T hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
TemperatureOperating Temperature0°C to 35°C (32°F to 95°F)
Storage Temperature-20°C to 60°C (-5°F to 140°F)
Relative Humidity5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • EAC
  • CCC
  • KC
  • UL
Warranty5 Years
NotesThe warranty period starts from the purchase date as stated on your purchase receipt.
EnvironmentRoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1
Optional Accessories
  • DDR4 ECC UDIMM : D4EC-2666-8G/D4EC-2666-16G
  • Expansion Units : RX1217/RX1217RP
  • Enterprise Series 3.5" SATA HDD : HAT5300 Series
  • Enterprise Series 2.5" SATA SSD : SAT5200 Series
  • M.2 SSD & 10GbE Combo Adapter Card : E10M20-T1
  • M.2 SSD Adapter Card: M2D20
  • 25GbE Network Interface Card : E25G30-F2
  • 10GbE Network Interface Card : E10G21-F2/E10G30-T2/E10G18-T1
  • Rail Kit Sliding : RKS-02
NotesAll memory modules will operate at the maximum frequency specified by the CPU manufacturer.

Software Specs

DSM Specifications
Storage ManagementMaximum Single Volume Size
  • 1 PB (64 GB memory required, for RAID 6 groups only)
  • 200 TB (32 GB memory required)
  • 108 TB
Maximum Internal Volume Number 128
SSD Read/Write Cache (Determining cache size) Yes
SSD TRIMYes
RAID GroupYes
Supported RAID Type
  • RAID F1
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
RAID Migration
  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
  • RAID 5 to RAID 6
Volume Expansion with Larger HDDs
  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
Volume Expansion by Adding a HDD
  • RAID F1
  • JBOD
  • RAID 5
  • RAID 6
Global Hot Spare Supported RAID Type
  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
Notes
  • Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.
  • When Peta Volume is enabled, validated services and packages are required. Please refer to this article for more information on limitations.
  • Actual maximum storage pool and volume sizes depend on drive sizes used, the number of drive bays available, and the RAID configuration.
  • Volumes over 108 TB require 32 GB of memory or more.
File SystemInternal Drives
  • Btrfs
  • ext4
External Drives
  • Btrfs
  • ext4
  • ext3
  • FAT
  • NTFS
  • HFS+
  • exFAT
NotesexFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.
File ServicesFile Protocol
  • SMB
  • AFP
  • NFS
  • FTP
  • WebDAV
  • Rsync
Maximum Concurrent SMB/AFP/FTP Connections 2,000
Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion)10,000
Windows Access Control List (ACL) IntegrationYes
NFS Kerberos AuthenticationYes
Notes
  • Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM.
  • During testing, the maximum number of SSDs supported by this model is installed in a RAID 5 configuration.
  • The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Account & Shared FolderMaximum Local User Accounts16,000
Maximum Local Groups512
Maximum Shared Folder512
Maximum Shared Folder Sync Tasks32
Hybrid ShareHybrid Share Folder Number15
Hyper BackupData & Folder BackupYes
Entire System BackupYes
NotesFull-system backup requires DSM 7.2 or later.
High AvailabilitySynology High AvailabilityYes
Log CenterSyslog Events per Second3,000
VirtualizationVMware ESXi 6.5 and VAAIYes
Windows Server 2016Yes
Windows Server 2019Yes
Windows Server 2022Yes
Citrix ReadyYes
OpenStackYes
General SpecificationsSupported ProtocolsSMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers
  • Chrome
  • Firefox
  • Edge
  • Safari
Supported LanguageEnglish, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
NotesFor an updated list of supported browser versions, check the DSM Technical Specifications.
Add-on Packages view the complete package list
Antivirus by McAfee (Trial)Yes
Central Management SystemYes
Synology ChatSuggested Maximum Users 4,000
Suggested Concurrent Users500
NotesFor tested models with expandable memory, the maximum amount of RAM was installed.
Download StationMaximum Concurrent Download Tasks80
SAN ManagerMaximum iSCSI Target Number256
Maximum LUN512
LUN Clone/Snapshot, Windows ODXYes
NotesiSCSI Manager has been renamed to SAN Manager in DSM 7.0.
Synology MailPlus / MailPlus ServerFree Email Accounts5 (Additional accounts require purchase of licenses)
Suggested Maximum Users 4,000
Suggested Concurrent Users 800
Maximum Server Performance 4,235,000 emails per day, approx. 129GB
Notes
  • Models with more than 4 bays were installed with two SSDs for SSD cache.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers.
  • Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Media ServerDLNA ComplianceYes
Synology PhotosFacial RecognitionYes
Object RecognitionYes
Snapshot ReplicationMaximum Snapshots per Shared Folder1,024
Maximum of System Snapshots65,536
Surveillance StationDefault Licenses2 (Additional cameras require purchase of licenses)
Suggested Maximum IP Cameras and Total FPS (H.264)
  • 720p : 75 channels, 2250 FPS
  • 1080p : 75 channels, 2100 FPS
  • 3M : 75 channels, 1500 FPS
  • 5M : 75 channels, 900 FPS
  • 4K : 55 channels, 550 FPS
Suggested Maximum IP Cameras and Total FPS (H.265)
  • 720p : 75 channels, 2250 FPS
  • 1080p : 75 channels, 2250 FPS
  • 3M : 75 channels, 2250 FPS
  • 5M : 75 channels, 1500 FPS
  • 4K : 75 channels, 900 FPS
Notes
  • Performance figures are obtained from testing conducted with the device fully populated with drives, with their default memory configuration, and under a continuous recording setup. Actual system capabilities may vary based on configuration, drive performance, enabled features, and the presence of additional workloads.
  • Use NVR Selector to quickly find a suitable model based on your requirements.
  • The maximum number of camera stream outputs is 2 times the suggested maximum number of IP cameras.
Synology DriveRecommended Number of Concurrent Sync Clients 1,800 (the number of connections that can be maintained when the recommended number of hosted files was reached)
Recommended Number of Hosted Files50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Notes
  • Exceeding the recommended numbers above will not block application operations, but may result in longer response time.
  • Utilizing SSD cache can significantly improve performance.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology OfficeSuggested Maximum Users 7,000
Suggested Concurrent Users 2,800
Notes
  • Multiple files were opened for testing and each file was edited by 30 users simultaneously.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Video StationYes
Virtual Machine ManagerRecommended Virtual Machine Instances 12
Recommended Virtual DSM Number (Licenses required) 12 (including 1 Free License)
NotesThe specifications vary depending on system configuration and memory size.
VPN ServerMaximum Connections60
X
