Synology SA3200D 12 bays Nas

Synology SA3200D 12 bays Nas

Synology SA3200D 12 bays Nas Data Protection and Service Availability for Your Business

The Synology SA3200D is a 12-bay NAS designed to deliver robust data protection and high service availability for businesses. With scalable storage, reliable redundancy features, and advanced data management, it ensures your critical data remains secure and accessible, even during high-demand operations.

Add to wishlist
Compare
Buy Now
Estimated Delivery :
Jan 23 - Jan 26
Free Shipping & Returns :
On orders above $79

More payment Options

Description

Maximizing availability has never been this easy

Simplify and centralize your data management infrastructure with Synology SA3200D. Storage controller redundancy powered by Synology High Availability automatically minimizes downtime to under a minute1, delivering outstanding cost effectiveness in just a 2U footprint.

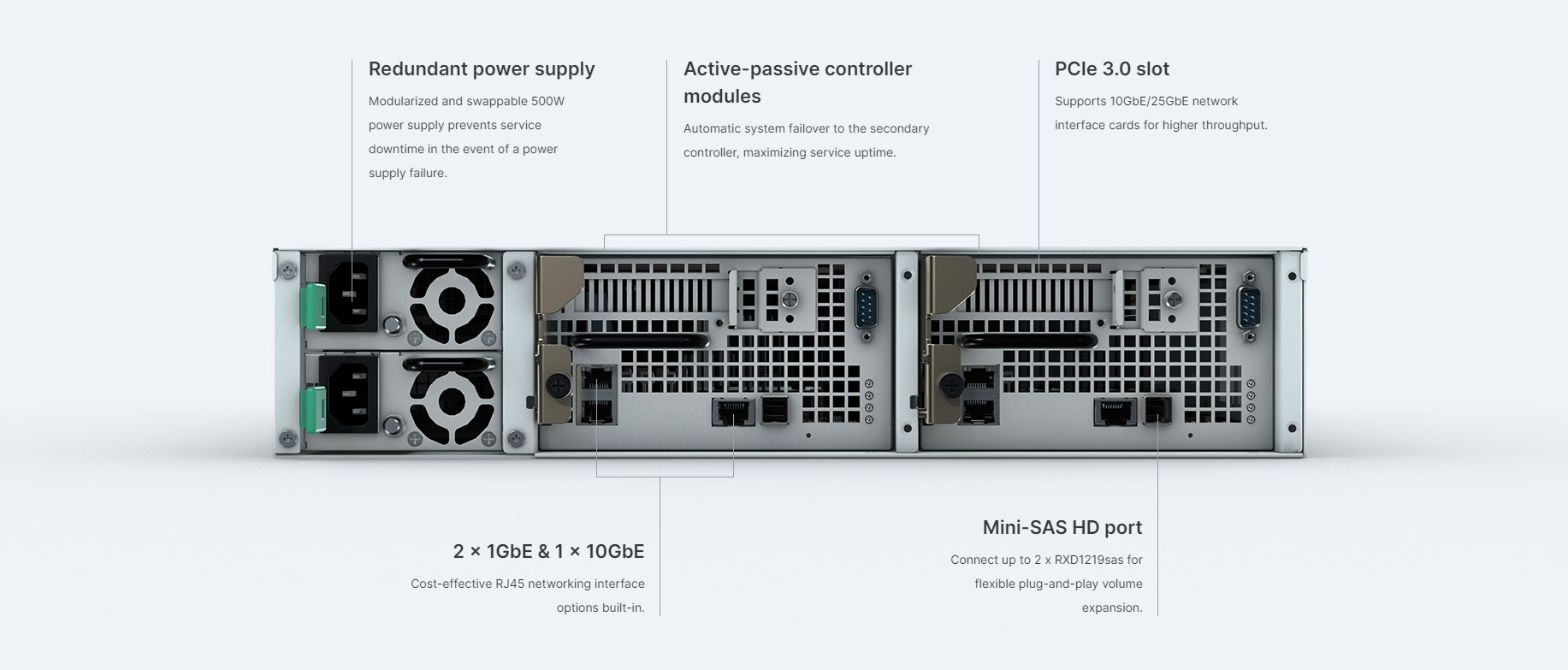

High Availability

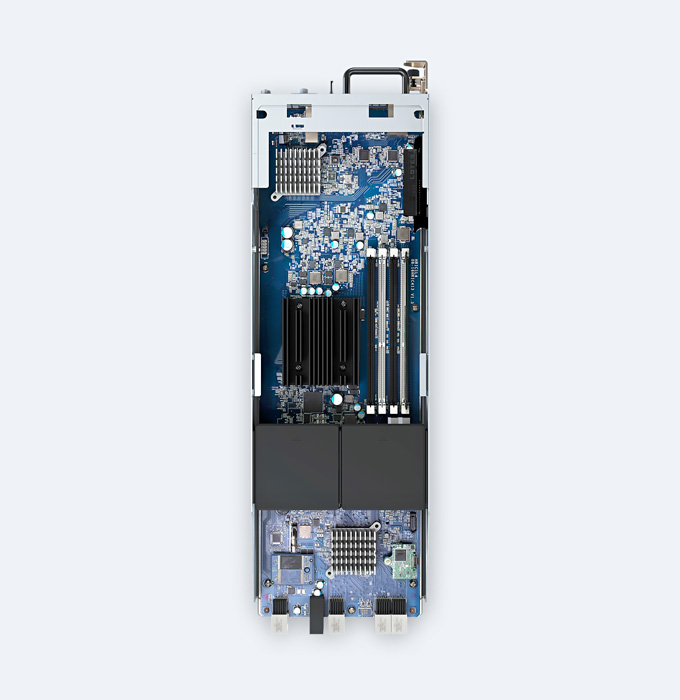

Dual storage controllers

Cost-effective

Shared storage design

Effortless

Automatic system-level protection

Scalable

Up to 36 drives for 576 TB2

Scales up with you

SA3200D supports two RXD1219sas expansion units for up to 36 SAS 3.5”/2.5” bays. Scale up to 576 TB2 without downtime to quickly meet new demands.
Processor

The Intel® Xeon® D-1521 processor on each controller provides enterprise-class reliability, availability, and serviceability.

4 x DDR4 memory slots

8 GB ECC UDIMM, expandable up to 64 GB for more demanding workloads.

Modularized cooling

Dual fan modules per controller allow for easy maintenance and replacement.

SATA DOM

Operating system files are isolated from the stored data, providing higher throughput and stability.

Non-Transparent Bridge (NTB)

Faster and lower-latency connectivity between controllers.

Ultimate Backup Solution

SA3200D integrates various backup applications into an intuitive user interface, offering durable storage technologies to safeguard your valuable data on any device.
Active Backup for Business

Centralize backup tasks for VMware, Windows, and file servers. Restore whatever you want fast and reliably when needed.

Hyper Backup

Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.

Synology Drive

Safeguard your computer with Synology Drive Client. Effortlessly perform real-time data backups and point-in-time file recovery.

Active Backup for Microsoft 365 / Google Workspace

Protect corporate data stored on the cloud. On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.

Fully certified storage virtualization solutions

Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.

Virtual Machine Manager

Virtual Machine Manager enables you to test new software in sandboxes, isolate your customers’ machines, and increase the flexibility of your server. You can easily run Windows, Linux, and Virtual DSM on your Synology NAS by just a few steps.
Snapshots for virtual machines

Conveniently manage your fleet of Synology NAS from a centralized console.

Multi-tenant environment

Create multiple isolated virtual machines for subsidiary business units or departments.

5-year warranty

At Synology, we are committed to product innovation and quality. Synology guarantees a robust and reliable data management experience with a 5-year limited warranty, providing responsive technical support and hardware replacement services to maximize your return on investment.

Powered by Synology DiskStation Manager

Synology High Availability

Real-time system-level protection with automatic failover mechanism to maximize service availability.

Snapshot Replication

Schedulable and instantaneous data protection for shared folders and iSCSI LUNs for disaster prevention.

Central Management System

Conveniently manage your fleet of Synology NAS from a centralized console.

Hyper Backup

Store multiple backup versions with block-level incremental data backup and cross-version deduplication.

Active Backup Suite

Integrated, modern, and license-free backup & instant recovery solution for VMware, Windows, Microsoft 365 & Google Workspace.

Virtual Machine Manager

Run various operating systems in isolated sandboxes. Seamlessly clone and restore virtual machines.

Performance backed by Synology drives

Engineered to handle high-intensity workloads, Synology hard drives consistently deliver top-grade performance.

HDD
Enterprise Series 3.5″ SAS

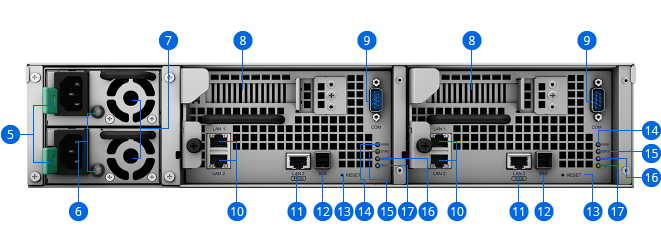

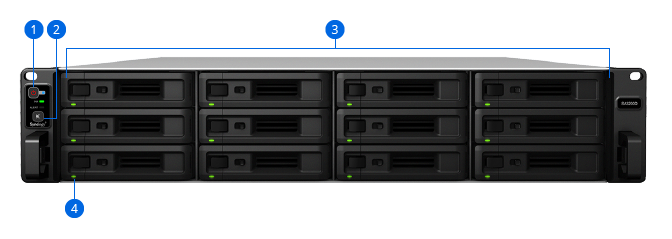

  • 1. Power button and indicator
  • 2. Beep off button
  • 3. Drive tray
  • 4. Drive status indicator
  • 5. Power port
  • 6. PSU indicator and beep off button
  • 7. PSU Fans
  • 8. PCIe expansion slot
  • 9. Console port
  • 10. 1GbE RJ-45 port
  • 11. 10GbE RJ-45 (10GBASE-T) port
  • 12. Expansion port
  • 13. Reset button
  • 14. Power Indicator
  • 15. Status Indicator
  • 16. Alert Indicator
  • 17. Remove Indicator

Hardware Specs

Hardware Specifications
ControllerNumber of Controller Module2
CPUCPU ModelIntel Xeon D-1521
CPU Quantity1 (per controller)
CPU Core4
CPU Architecture64-bit
CPU Frequency2.4 (base) / 2.7 (turbo) GHz
Hardware Encryption EngineYes
MemorySystem Memory8 GB DDR4 ECC UDIMM (per controller)
Memory Module Pre-installed8 GB (8 GB x 1) (per controller)
Total Memory Slots4 (per controller)
Maximum Memory Capacity64 GB (16 GB x 4) (per controller)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For more information on the recommended memory configurations, visit here.
StorageDrive Bays12
Maximum Drive Bays with Expansion Unit36 (RXD1219sas x 2)
Compatible Drive Type*(See all supported drives)
  • 3.5” dual-port SAS HDD
  • 2.5” dual-port SAS HDD
  • 2.5” dual-port SAS SSD
Hot Swappable Drive*Yes
Notes"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External PortsRJ-45 1GbE LAN Port2 (per controller)
RJ-45 10GbE LAN Port1 (per controller)
Expansion Port1 (per controller)
Expansion Port TypeMini-SAS HD
PCIePCIe Expansion1 x Gen3 x8 slot (x8 link) (per controller)
AppearanceForm Factor (RU)2U
Size (Height x Width x Depth)88 mm x 482 mm x 724 mm
Weight19.7 kg
Rack Installation Support*4-post 19" rack (Synology Rail Kit - RKS-02)
NotesThe rail kit is sold separately
OthersSystem Fan60 mm x 60 mm x 2 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System FanYes
Power RecoveryYes
Noise Level*51.3 dB(A)
Power Supply Unit / Adapter500 watts
Redundant Power SupplyYes
AC Input Power Voltage100V to 240V AC
Power Frequency50/60 Hz, Single Phase
Power Consumption417.48 watts (Access)
British Thermal Unit1425.45 BTU/hr (Access)
Notes
  • Power consumption is measured when it is fully loaded with Seagate ST3600057SS hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate ST8000NM0075 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology server at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.
TemperatureOperating Temperature0°C to 35°C (32°F to 95°F)
Storage Temperature-20°C to 60°C (-5°F to 140°F)
Relative Humidity5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • EAC
  • CCC
Warranty5 Years
NotesThe warranty period starts from the purchase date as stated on your purchase receipt.
EnvironmentRoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1
Optional Accessories
  • DDR4 ECC UDIMM: D4EC-2666-8G/D4EC-2666-16G
  • Expansion Units: RXD1219sas
  • Enterprise Series 3.5" SAS HDD: HAS5300 Series
  • 25GbE Network Interface Card: E25G30-F2
  • 10GbE Network Interface Card: E10G21-F2/ E10G30-T2/ E10G18-T1
  • Rail Kit Sliding: RKS-02
NotesAll memory modules will operate at the maximum frequency specified by the CPU manufacturer.

Software Specs

DSM Specifications
Storage ManagementMaximum Single Volume Size
  • 200 TB (32 GB memory required)
  • 108 TB
Maximum Internal Volume Number64
SSD Read/Write Cache (Determining cache size)Yes
SSD TRIMYes
RAID GroupYes
Supported RAID Type
  • RAID F1
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
RAID Migration
  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
Volume Expansion with Larger HDDs
  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
Volume Expansion by Adding a HDD
  • RAID F1
  • JBOD
  • RAID 5
  • RAID 6
Global Hot Spare Supported RAID Type
  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
Notes
  • Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.
  • Volumes over 108 TB require 32 GB of memory or more.
File SystemInternal Drives
  • Btrfs
  • ext4
File ServicesFile Protocol
  • SMB
  • AFP
  • NFS
  • FTP
  • WebDAV
  • Rsync
Maximum Concurrent SMB/AFP/FTP Connections1,200
Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion)6,000
Windows Access Control List (ACL) IntegrationYes
NFS Kerberos AuthenticationYes
Notes
  • Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM.
  • During testing, the maximum number of SSDs supported by this model is installed in a RAID 5 configuration.
  • The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Account & Shared FolderMaximum Local User Accounts16,000
Maximum Local Groups512
Maximum Shared Folder512
Maximum Shared Folder Sync Tasks32
Hybrid ShareHybrid Share Folder Number30
Hyper BackupData & Folder BackupYes
Entire System BackupYes
NotesFull-system backup requires DSM 7.2 or later.
High AvailabilitySynology High AvailabilityYes
NotesSynology High Availability is a built-in package for SA3200D to maximize service uptime. SA3200D does not support forming a high-availability cluster with another server unit.
Log CenterSyslog Events per Second3,000
VirtualizationVMware ESXi 6.5 and VAAIYes
Windows Server 2016Yes
Windows Server 2019Yes
Windows Server 2022Yes
Citrix ReadyYes
OpenStackYes
General SpecificationsSupported ProtocolsSMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers
  • Chrome
  • Firefox
  • Edge
  • Safari
Supported LanguageEnglish, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
NotesFor an updated list of supported browser versions, check the DSM Technical Specifications.
Add-on Packages view the complete package list
Antivirus by McAfee (Trial)Yes
Central Management SystemYes
Synology ChatSuggested Maximum Users4,000
Suggested Concurrent Users500
NotesFor tested models with expandable memory, the maximum amount of RAM was installed.
SAN ManagerMaximum iSCSI Target Number256
Maximum LUN512
LUN Clone/Snapshot, Windows ODXYes
NotesiSCSI Manager has been renamed to SAN Manager in DSM 7.0.
Synology MailPlus / MailPlus ServerFree Email Accounts5 (Additional accounts require purchase of licenses)
Suggested Maximum Users2,500
Suggested Concurrent Users500
Maximum Server Performance3,595,000 emails per day, approx. 109 GB
Notes
  • Models with more than 4 bays were installed with two SSDs for SSD cache.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers.
  • Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Snapshot ReplicationMaximum Snapshots per Shared Folder1,024
Maximum of System Snapshots65,536
Surveillance StationDefault Licenses2 (Additional cameras require purchase of licenses)
Suggested Maximum IP Cameras and Total FPS (H.264)
  • 720p: 100 channels, 3000 FPS
  • 1080p: 100 channels, 2600 FPS
  • 3M: 100 channels, 1500 FPS
  • 5M: 90 channels, 900 FPS
  • 4K: 55 channels, 550 FPS
Suggested Maximum IP Cameras and Total FPS (H.265)
  • 720p: 100 channels, 3000 FPS
  • 1080p: 100 channels, 3000 FPS
  • 3M: 100 channels, 2400 FPS
  • 5M: 100 channels, 1500 FPS
  • 4K: 100 channels, 1080 FPS
Notes
Synology DriveRecommended Number of Concurrent Sync Clients1,800 (the number of connections that can be maintained when the recommended number of hosted files was reached)
Recommended Number of Hosted Files50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Notes
  • Exceeding the recommended numbers above will not block application operations, but may result in longer response time.
  • Utilizing SSD cache can significantly improve performance.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology OfficeSuggested Maximum Users7,000
Suggested Concurrent Users2,800
Notes
  • Multiple files were opened for testing and each file was edited by 30 users simultaneously.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Virtual Machine ManagerRecommended Virtual Machine Instances8 (Learn more)
Recommended Virtual DSM Number (Licenses required) 8 (including 1 Free License)
NotesThe specifications vary depending on system configuration and memory size.
VPN ServerMaximum Connections60
